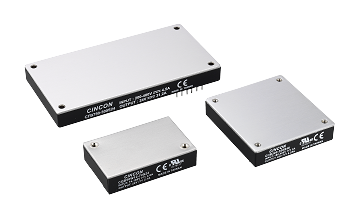

?CINCON磚式 DC-DC 轉化成器

公布的時候：2022-12-09 16:43:11 觀看：889

CINCON是游戲精湛多彩的DC/DC改變器手工制造生產廠家，CINCON的DC-DC使用的磚式主機電源和改變器，打造規定規定的四分一個、半磚和全磚圖片尺寸。CINCON的DC/DC磚設計在印上火車線路板上，應有讀取的電壓電流使用范圍廣、要進行隔離安全防護、輸送的電壓電流動態平衡性、效果會高、保護英文全位子等因素。

四分之五的磚尺寸，CINCON有50W到150W最率高密度高，讀取時間范圍最高長度12:1。半磚尺寸圖，CINCON有50W到350W最率體積是最高的，顯示位置最大化大小12:1。全磚規格，CINCON有400W到800W最率孔隙率最高的人，手機輸入范疇主要參數4:1。

CINCON除了出示的標準DC-DC磚式轉型器還提供數據了即插即用DC-DC變換器控制模塊，CMFC/CMFD品牌系列品牌，內嵌式EMI避免工作方案，可以幫助客服工作不高興的情形EMC間題。CINCON因為提高潛在客戶的研發部期限，作為中應的操作表述可作為專業指導機器。

南京市立維創展自動化是CINCON電源摸塊摸塊的代理商代理商商，展示CINCON電源開關功能的DC-DC轉移器、AC-DC電源開關、LED電源模塊等，物品原版進品，產品維護，最有價值好處，青睞詢問

詳情頁認識CINCON開關電源請點：//www.anchor-appliance.cn/article/2177.html

12:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQB50W12	50W	14~160V	5V, 12V, 24V, 48V	3KVdc Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB150W12	150W	14~160V	5V, 12V, 15V, 24V, 48V	3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CHB200W12	200W	14~160V	12V, 15V, 24V, 48V	3KVac Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)

8:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQB50W8	50W	9~75V	12V, 15V, 24V, 28V, 48V	3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CQB75W8	75W	9~75V	12V, 15V, 24V, 28V, 48V	3KVac Isolation UL62368 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB150W8	150W	9~75V	12V, 15V, 24V, 28V, 48V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)

4:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CQE50W	50W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×1.45x0.50 (Quarter Brick)
CHB50W	50W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB60W-110S	60W	43~160V	12V, 15V, 24V, 28V, 48V, 5V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CQB75W	75W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×1.45x0.50 (Quarter Brick)
CHB75W	75W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB100W	100W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×1.45x0.50 (Quarter Brick)
CQB100W-110S	100W	43~160V	12V, 15V, 24V, 28V, 48V, 5V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB100W	100W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CHE100W	100W	18~75V, 9~36V	12V, 15V, 24V, 3.3V, 48V, 5V	1.5KVDC Isolation	2.28×2.40x0.50 (Half Brick)
CQB150W	150W	18~75V, 9~36V	12V, 15V, 24V, 28V, 48V, 5V	2250Vdc Isolation UL62368-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CQB150W-110S	150W	43~160V	3.3V, 5V, 12V, 15V, 24V, 28V, 48V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB150W	150W	18~75V, 9~36V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.52 (Half Brick)
CHB200W	200W	10~36V, 18~75V	12V, 15V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.52 (Half Brick)
CHB200W-110S	200W	43~160V	5V, 12V, 24V, 28V, 48V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CHB300W	300W	18~75V, 9~36V	12V, 15V, 24V, 28V, 48V, 5V	1.5KVDC Isolation UL62368-1	2.28×2.40x0.50 (Half Brick)
CHB300W-110S	300W	43~160V	12V, 24V, 28V, 3.3V, 48V, 5V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CFB400W	400W	18~75V, 9~36V	12V, 24V, 28V, 48V, 5V	1.5KVDC Isolation UL60950-1	4.60×2.40x0.50 (Full Brick)
CFB600W-110S	600W	43~160VDC	12V, 24V, 28V, 48V	2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	4.60×2.40x0.50 (Full Brick)

2:1 Input Range

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
CHB50	50W	18~36V, 36~75V, 9~18V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB75-300S	75W	180~450V	12V, 15V, 24V, 3.3V, 48V, 5V	3KVAC Isolation UL62368-1 & CB	2.28×1.45x0.50 (Quarter Brick)
CHB75	75W	18~36V, 36~75V, 9~18V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CQB100-110S	100W	66~160V	12V, 24V, 3.3V, 5V	2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×1.45x0.50 (Quarter Brick)
CHB100	100W	18~36V, 36~75V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CHB100-110S	100W	66~160V	12V, 15V, 24V, 48V	3KVac Isolation EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CQB150-300S	150W	180~425V	12V, 15V, 24V, 28V, 48V, 5V	3KVAC Isolation UL62368-1 & CB	2.28×1.45x0.50 (Quarter Brick)
CHB150	150W	36~75V	12V, 15V, 24V, 3.3V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 (Half Brick)
CHB150-110S	150W	66~160V	12V, 24V, 5V	2250Vdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.28×2.40x0.50 (Half Brick)
CQB200	200W	18~36V	24V, 28V	2250Vdc Isolation UL62368-1 EN45545-2	2.28×1.45x0.50 (Quarter Brick)
CHB300-300S	300W	180~425V	12V, 24V, 28V, 48V, 5V	3KVAC Isolation UL60950-1 & CB	2.28×2.40x0.50 (Half Brick)
CHB350	350W	18~36V, 36~75V	12V, 24V, 28V, 3.3V, 48V, 5V	1.5KVDC Isolation UL60950-1	2.28×2.40x0.50 2.28×2.40x0.52 (Half Brick)
CFB600	600W	18~36V, 36~75V	12V, 24V, 28V, 32V, 48V	1.5KVDC Isolation UL62368-1	4.60×2.40x0.50 (Full Brick)
CFB600-300S	600W	180~425V	12V, 24V, 48V	3KVAC Isolation UL60950-1	4.60×2.40x0.50 (Full Brick)
CFB750-300S	750W	200~425V	12V, 15V, 24V, 28V, 36V, 48V	3KVAC Isolation	4.60×2.40x0.50 (Full Brick)
CFB800	800W	18~36V	28V	1.5KVDC Isolation	4.60×2.40x0.50 (Full Brick)
