?Q20HK-1900R定向耦合器

為重要規格

Q20HK-1900R定向耦合器

速度：1.8 – 2 GHz耦合電路：20dB±0.5dB大專一性：20音貝駐波比：1.3:1加入衰減：0.3dB工作功率：80瓦分析板722-0006-07-E01定購時期：6-8周

品牌：Electro-Photonics

物料商品詳情頁介召

1800-2000 MHz Directional Coupler

The Q20HK-1900R is a bi-directional coupler with high directivity and high power handling. Q20HK-1900R is a replacement for Soshin P/N GSC311-20M1900. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

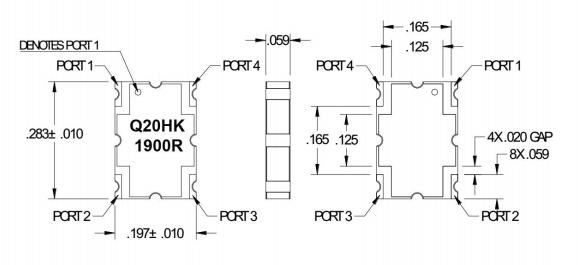

Size: 0.283 x 0.197 inches
Frequency: 1.8 – 2 GHz
Coupling: 20 dB ± 0.5 dB
Directivity: 20 dB
VSWR: 1.3:1
Insertion Loss: 0.3 dB
Power: 80 W
Evaluation board 722-0006-07-E01
