VICOR主機電源信息模塊EnMods組合FARM和HAM的兩相電 AC 前段設計

上傳時刻：2020-10-20 15:17:27 訪問：6919

VICOR電源模塊ENMOD系統是一種交流前端解決方案，它將無源功率因數校正和自動調整結合在一起。VICOR電壓傳感器ENMOD系統結合濾波和保持電容器，完全滿足EN61000-3-2諧波電流、EN55022B電平輻射、EN61000-4-5浪涌抗干擾、EN61000-4-11線路干擾和EN61000-3浪涌電流的要求。與有源PFC解決方案不同，VICOR供電模塊圖片EnMods不產生EMI，這大大簡化和降低了系統噪聲和濾波要求。

VICOR電原電源模塊EnMods的結構特征和競爭優勢

115/230 VAC搜索的一鍵整改

諧波電流大小衰減合適EN61000-3-2

EMI濾波器遵循EN55022，B級

瞬態擾亂遏制符合要求EN 61000-4-5

西安市立維創展科枝是VICOR電壓傳感器的銷售商生產商商，最主要作為DC-DC、AC-DC交流電壓方案電壓，隔離開、非隔離開交流電壓方案電壓互轉器等，立維創展強院為投資者展示高端保證、高新產品品質量、定價公證的微波通信元功率器件新產品,歡迎辭咨詢了解。.

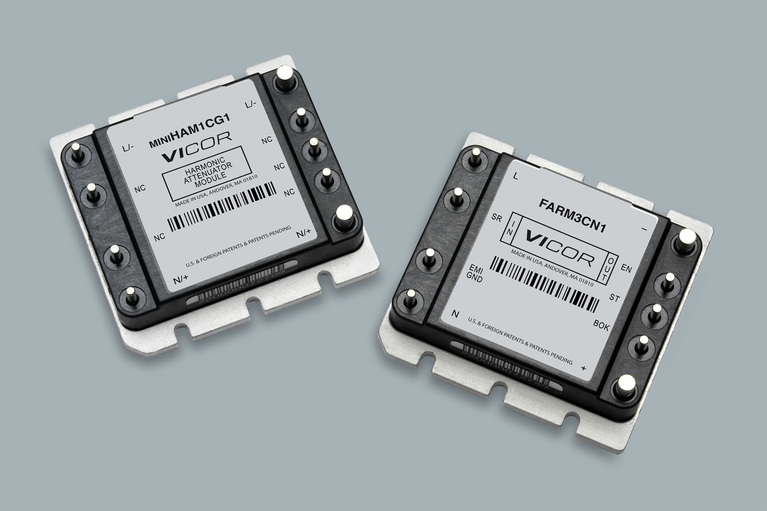

VICOR電源模塊EnMods整合FARM和HAM的單相 AC 前端系統

Part Number	成品中等級	引腳結構	符合RoHS	基材
EN1C11	–20°C to +100°C	Short	No	Slotted
EN1C12	–20°C to +100°C	Short	No	Threaded
EN1C13	–20°C to +100°C	Short	No	Through hole
EN1C21	–20°C to +100°C	Long	No	Slotted
EN1C22	–20°C to +100°C	Long	No	Threaded
EN1C23	–20°C to +100°C	Long	No	Through hole
EN1CS1	–20°C to +100°C	Short ModuMate	No	Slotted
EN1CN1	–20°C to +100°C	Long ModuMate	No	Slotted
EN1CN2	–20°C to +100°C	Long ModuMate	No	Threaded
EN1CN3	–20°C to +100°C	Long ModuMate	No	Through hole
EN1T11	–40°C to +100°C	Short	No	Slotted
EN1T21	–40°C to +100°C	Long	No	Slotted
EN1T22	–40°C to +100°C	Long	No	Threaded
EN1T23	–40°C to +100°C	Long	No	Through hole
EN1TS1	–40°C to +100°C	Short ModuMate	No	Slotted
EN1TN1	–40°C to +100°C	Long ModuMate	No	Slotted
EN1TN2	–40°C to +100°C	Long ModuMate	No	Threaded
EN1H21	–40°C to +100°C	Long	No	Threaded
EN1HN1	–40°C to +100°C	Long ModuMate	No	Slotted
EN1HN3	–40°C to +100°C	Long ModuMate	No	Through hole
EN1CF2	–20°C to +100°C	Short RoHS	Yes	Threaded
EN1CG1	–20°C to +100°C	Long RoHS	Yes	Slotted
EN1CG2	–20°C to +100°C	Long RoHS	Yes	Threaded
EN1CG3	–20°C to +100°C	Long RoHS	Yes	Through hole
EN1TG1	–40°C to +100°C	Long RoHS	Yes	Slotted
EN1HG1	–40°C to +100°C	Long RoHS	Yes	Slotted
