CINCON電源開關Brick 30-750W

推送的時間：2020-11-25 16:00:12     觀看：1672

CINCON電源開關的DC/DC Brick選擇提供工業標準的1/4、半和全磚尺寸。CINCON電源適配器的DC/DC磚將配置在紙箱印刷電路設計板上，極具發送電阻條件寬、分隔、效果電阻動態平衡、速度高和整體防護的作用。

成都 市立維創展技術有現工廠是CINCON電原輸出模塊的代銷商，可以提供CINCON開關電原模塊圖片直流電原電電、交直流電原電原電開關電原、LED電源線等，原產品的進口量，質量水平確認，價位好處，歡迎圖片詳詢。

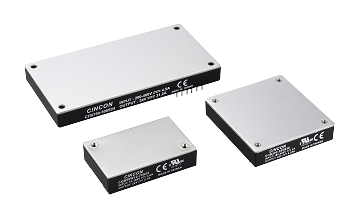

 CINCON電源Brick 30-750W

2:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


CHB50

50W

9~18V, 18~36V, 36~75V

3.3V, 5V, 12V, 15V, 24V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)


CHB75

75W

9~18V, 18~36V, 36~75V

3.3V, 5V, 12V, 15V, 24V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)


CQB100-110S

100W

66~160V

3.3V, 5V, 12V, 24V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)


CHB100

100W

18~36V, 36~75V

3.3V, 5V, 12V, 15V, 24V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)


CHB100-110S

100W

66~160V

12V, 15V, 24V, 48V

3KVac Isolation
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)


CQB150-300S

150W

180~425V

5V, 12V, 15V, 24V, 28V, 48V

3KVAC Isolation
UL60950-1 & CB

2.28×1.45x0.50
(Quarter Brick)


CHB150

150W

36~75V

3.3V, 5V, 12V, 15V, 24V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)


CHB150-110S

150W

66~160V

5V, 12V, 24V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)


CHB300-300S

300W

180~425V

5V, 12V, 24V, 28V, 48V

3KVAC Isolation
UL60950-1 & CB

2.28×2.40x0.50
(Half Brick)


CHB350

350W

18~36V, 36~75V

3.3V, 5V, 12V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
2.28×2.40x0.52
(Half Brick)


CFB600

600W

18~36V, 36~75V

12V, 24V, 28V, 32V, 48V

1.5KVDC Isolation
UL60950-1

4.60×2.40x0.50
(Full Brick)


CFB600-300S

600W

180~425V

12V, 24V, 48V

3KVAC Isolation
UL60950-1

4.60×2.40x0.50
(Full Brick)


CFB750-300S

750W

200~425V

12V, 15V, 24V, 28V, 36V, 48V

3KVAC Isolation

4.60×2.40x0.50
(Full Brick)

4:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


CHB50W

50W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)


CQE50W

50W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 48V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)


CQB60W-110S

60W

43~160V

5V, 12V, 15V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)


CHB75W

75W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)


CQB75W

75W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)


CQB100W

100W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

NEW

CQB100W-110S

100W

43~160V

5V, 12V, 15, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)


CHB100W

100W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)


CHE100W

100W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 48V

1.5KVDC Isolation

2.28×2.40x0.50
(Half Brick)


CQB150W

150W

9~36V,18~75V

5V, 12V, 24V, 28V, 48V

2250Vdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)


CQB150W-110S

150W

43~160V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)


CHB150W

150W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)

NEW

CHB200W-110S

200W

43~160V

5V, 12V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)


CHB200W

200W

10~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)


CHB300W-110S

300W

43~160V

3.3V, 5V, 12V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)


CHB300W

300W

9~36V, 18~75V

5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)


CFB400W

400W

9~36V, 18~75V

5V, 12V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

4.60×2.40x0.50
(Full Brick)

NEW

CFB600W-110S

600W

43-160V

12V, 24V, 28V, 48V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

4.60×2.40x0.50
(Full Brick)

8:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

CQB50W8

50W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

NEW

CQB75W8

75W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)


CHB150W8

150W

9~75V

12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

12:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


CQB50W12

50W

14~160V

5V, 12V, 24V, 48V

3KVdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

NEW

CHB150W12

150W

14~160V

12V, 15V, 24V, 48V, 5V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

NEW

CHB200W12

200W

14~160V

12V, 15V, 24V, 48V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)
