HEROTEK零偏置肖特基穩壓管檢波器100 KHz至50 GHz

公布的時：2020-10-26 16:06:45 瀏覽網頁：3160

肖特基整流二極管是由金屬材質-半導構成成的半導二級管，具同向輸出功率低、開關按鈕速率快的亮點。與近似利用中的點接觸到二級管相較于，HEROTEK零偏置肖特基電子元器件大家庭中的一員-二極管存在更寬的日常動態范圍之內、更好的熱動態平衡性和更精確度的每平方米律因素。HEROTEK零偏置肖特基場效應管檢波器不止該用于五金機械檢驗儀器、彈道導彈機、開關電源、的信號評估和彈道導彈制導操作系統，還該用作微波通信工率試探器。

零偏肖特基場效應管遙測器的是一個心智成熟軟件是厘米波和亞厘米波輸出功率論文測量，在這軟件中能有郊地論文測量和混合型喂養從徽波到太赫茲的電磁波輻射能。

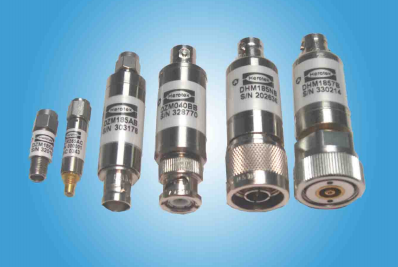

HEROTEK零偏置肖特基二極管檢波器

HEROTEK零偏置肖特基肖特基二極管遙測器的基本特征

并沒有差別

連接搜索以建立經驗豐富的駐波比

聲音頻率初始化失敗比較十分平整光滑

非常的高的快速度

HEROTEK零偏肖特基電子元器件大家庭中的一員-二極管遙測器的軟件應用

精密鑄造測試圖片生產設備

壓力變送器把控

電源線和表現攝像頭監控

汽車雷達或巡航導彈制導機系統

實驗性室測試英文

武漢市市立維創展科技信息有現廠家，授權文件代辦賣出HEROTEK品牌，品牌比如檢波器、縮放器、限幅器、PIN控制開關、數據信息發生了器等，HEROTEK食品需求卓越的功效，高耐用性和迅猛交由，誠邀諮詢。

MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (± dB)	LOW LEVEL SENSITIVITY (mV / mW)	CONNECTOR		SIZE (INCHES)		OUTLINE
MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (± dB)	LOW LEVEL SENSITIVITY (mV / mW)	INPUT	OUTPUT	LENGTH	DIA	OUTLINE
DZR124AA	10 MHz – 12.4 GHz	1.25:1	0.3	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZR124AC	10 MHz – 12.4 GHz	1.25:1	0.3	0.5	SMA (M)	SMC (M)	1.47	0.32	AC2
DZR185AA	10 MHz – 18.5 GHz	1.25:1	0.5	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZR185AC	10 MHz – 18.5 GHz	1.25:1	0.5	0.5	SMA (M)	SMC (M)	1.47	0.32	AC2
DZR265AA	10 MHz – 26.5 GHz	1.3:1 (to 18.5 GHz) 2.0:1 (to 26.5 GHz)	0.5 (to 18.5 GHz) 1.0 (to 26.5 GHz)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZR265AC	10 MHz – 26.5 GHz	1.3:1 (to 18.5 GHz) 2.0:1 (to 26.5 GHz)	0.5 (to 18.5 GHz) 1.0 (to 26.5 GHz)	0.5	SMA (M)	SMC (M)	1.47	0.32	AC2
DZM020AA	100 KHz - 2.0 GHz	1.3:1	0.1 (per 100 KHz) 0.3 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM020BB	100 KHz - 2.0 GHz				BNC (M)	BNC (F)	2.48	0.68	BB3
DZM040AA	100 KHZ - 4.0 GHz				SMA (M)	SMA (F)	1.05	0.32	A
DZM040BB	100 KHZ - 4.0 GHz				BNC (M)	BNC (F)	2.48	0.68	BB3
DZM124AA	10 MHz – 12.4 GHz	1.2:1 (to 4.5 GHz) 1.3:1 (to 7 GHz) 1.4:1 (to 12.4 GHz)	0.2 (per octave) 0.5 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM124AB					SMA (M)	BNC (F)	2.50	0.56	AB3
DZM124NB					Type N (M)	BNC (F)	2.46	0.75	NB3
DZM185AA	10 MHz – 18.5 GHz	1.2:1(to 4 GHz) 1.5:1(to 18.5 GHz)	(per octave to 8 GHz) (for 10 MHz to 8 GHz) 0.5 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM185AB					SMA (M)	BNC (F)	2.50	0.56	AB13
DZM185AB2					SMA (M)	BNC (F)	1.89	0.39	AB23
DZM185AC					SMA (M)	SMC (M)	1.20	0.32	AC1
DZM185NB					Type N (M)	BNC (F)	2.46	0.75	NB3
DZM1857B					APC-7	BNC (F)	2.59	0.75	7B3
MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (± dB)	LOW LEVEL SENSITIVITY (mV / mW)	CONNECTOR		SIIZE (INCHES)		OUTLINE
MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (± dB)	LOW LEVEL SENSITIVITY (mV / mW)	INPUT	OUTPUT	LENGTH	DIA	OUTLINE
DZM265AA	10 MHz-26.5 GHz	1.2:1 (to 4 GHz) 1.5:1 (to 18 GHz) 1.8:1 (to 26.5 GHz)	0.2 (per octave to 8 GHz) 0.5 (for 10 MHz to 18 GHz) 1.0 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM265AB					SMA (M)	BNC (F)	1.89	0.39	AB23
DZM265AC					SMA (M)	SMC (M)	1.20	0.32	AC1
DZM2653B					APC3.5 (M)	BNC (F)	1.89	0.39	3B3
DZM2653C					APC3.5 (M)	SMC (M)	1. 70	0.38	3C3
DZR400KA	10 MHz – 40 GHz	1.3:1 (to 18 GHz) 1.8:1 (to 40 GHz)	0.3 (to 18 GHz) 0.6 (to 26 GHz) 1.0 (to 40 GHz)	0.4	K* (M) (2.9mm)	SMA (F)	1.30	0.32	C1
DZR400KB					K* (M) (2.9mm)	BNC (F)	1.89	0.39	KB3
DZR400KC					K* (M) (2.9mm)	SMC (M)	1.35	0.32	KC3
DZR50024A	10 MHz – 50 GHz	1.3:1 (to 18 GHz) 1.6:1 (to 26 GHz) 1.8:1 (to 40 GHz) 2.0:1 (to 50 GHz)	0.3 (to 18 GHz) 0.6 (to 26 GHz) 0.8 (to 40 GHz) 1.0 (to 50 GHz)	0.5	2.4mm (M)	SMA (F)	1.32	0.32	24A3
DZR50024B					2.4mm (M)	BNC (F)	1.91	0.39	24B3
DZR50024C					2.4mm (M)	SMC (M)	1.36	0.32	24C3
DZ1018	1 GHz – 18.0 GHz	8.0:1 (Typical)	1.0 (Typical)	1.8	SMA (M)	SMA (F)	1.16	0.32	B
DZ1026	1 GHz – 26.0 GHz	8.0:1 (Typical)	1.5 (Typical)	1.6	SMA (M)	SMA (F)	1.16	0.32	B
