?CINCON磚式 DC-DC 改換器

上線周期：2022-12-09 16:43:11     看：805

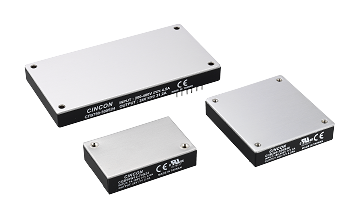

CINCON是實踐經驗充實的DC/DC換為器制造出銷售商，CINCON的DC-DC選則磚式供電和轉為器，給予準則標準化的四分之三、半磚和全磚尺寸規格。CINCON的DC/DC磚設置成在彩印各線路板上，配備投入電流電壓值規模廣、屏蔽防御、內容輸出電流電壓值安全穩定量分析、轉化率會高、守護全方向位置等性質。

四分之中的磚規格，CINCON有50W到150W最率密度計算最高的，設置規模比較大凈寬12:1。半磚寸尺，CINCON有50W到350W最率體積密度最好，顯示依據較大 尺寸12:1。全磚長寬高，CINCON有400W到800W最率容重高，放入依據極大長寬比4:1。

CINCON不僅能打造標淮DC-DC磚式換為器還提供了了即插即用DC-DC轉為器輸出模塊，CMFC/CMFD系列的產品的產品，內嵌式EMI凈化處理措施，可以幫助老客戶凈化處理不快樂的原因EMC大問題。CINCON要減掉朋友的研究開發時光，出示到底的廣泛應用講述做為輔導軟件工具。

東莞 市立維創展科學技術是CINCON開關電源模組的代理費生產商商，提拱CINCON交流電源控制器的DC-DC轉化成器、AC-DC電原、LED電壓等，類產品原廠進口貨，產品服務保障，富于的價格競爭優勢，邀請網絡咨詢

商品詳情熟知CINCON電原請點擊率：//www.anchor-appliance.cn/article/2177.html


12:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB50W12

50W

14~160V

5V, 12V, 24V, 48V

3KVdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB150W12

150W

14~160V

5V, 12V, 15V, 24V, 48V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB200W12

200W

14~160V

12V, 15V, 24V, 48V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

8:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB50W8

50W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB75W8

75W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB150W8

150W

9~75V

12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

4:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQE50W

50W

18~75V, 9~36V

12V, 15V, 24V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CHB50W

50W

18~75V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB60W-110S

60W

43~160V

12V, 15V, 24V, 28V, 48V, 5V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB75W

75W

18~75V, 9~36V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CHB75W

75W

18~75V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB100W

100W

18~75V, 9~36V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CQB100W-110S

100W

43~160V

12V, 15V, 24V, 28V, 48V, 5V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB100W

100W

18~75V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CHE100W

100W

18~75V, 9~36V

12V, 15V, 24V, 3.3V, 48V, 5V

1.5KVDC Isolation

2.28×2.40x0.50
(Half Brick)

CQB150W

150W

18~75V, 9~36V

12V, 15V, 24V, 28V, 48V, 5V

2250Vdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB150W-110S

150W

43~160V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB150W

150W

18~75V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)

CHB200W

200W

10~36V, 18~75V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)

CHB200W-110S

200W

43~160V

5V, 12V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB300W

300W

18~75V, 9~36V

12V, 15V, 24V, 28V, 48V, 5V

1.5KVDC Isolation
UL62368-1

2.28×2.40x0.50
(Half Brick)

CHB300W-110S

300W

43~160V

12V, 24V, 28V, 3.3V, 48V, 5V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CFB400W

400W

18~75V, 9~36V

12V, 24V, 28V, 48V, 5V

1.5KVDC Isolation
UL60950-1

4.60×2.40x0.50
(Full Brick)

CFB600W-110S

600W

43~160VDC

12V, 24V, 28V, 48V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

4.60×2.40x0.50
(Full Brick)

2:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CHB50

50W

18~36V, 36~75V, 9~18V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB75-300S

75W

180~450V

12V, 15V, 24V, 3.3V, 48V, 5V

3KVAC Isolation
UL62368-1 & CB

2.28×1.45x0.50
(Quarter Brick)

CHB75

75W

18~36V, 36~75V, 9~18V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB100-110S

100W

66~160V

12V, 24V, 3.3V, 5V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB100

100W

18~36V, 36~75V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CHB100-110S

100W

66~160V

12V, 15V, 24V, 48V

3KVac Isolation
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CQB150-300S

150W

180~425V

12V, 15V, 24V, 28V, 48V, 5V

3KVAC Isolation
UL62368-1 & CB

2.28×1.45x0.50
(Quarter Brick)

CHB150

150W

36~75V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CHB150-110S

150W

66~160V

12V, 24V, 5V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CQB200

200W

18~36V

24V, 28V

2250Vdc Isolation
UL62368-1
EN45545-2

2.28×1.45x0.50
(Quarter Brick)

CHB300-300S

300W

180~425V

12V, 24V, 28V, 48V, 5V

3KVAC Isolation
UL60950-1 & CB

2.28×2.40x0.50
(Half Brick)

CHB350

350W

18~36V, 36~75V

12V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
2.28×2.40x0.52
(Half Brick)

CFB600

600W

18~36V, 36~75V

12V, 24V, 28V, 32V, 48V

1.5KVDC Isolation
UL62368-1

4.60×2.40x0.50
(Full Brick)

CFB600-300S

600W

180~425V

12V, 24V, 48V

3KVAC Isolation
UL60950-1

4.60×2.40x0.50
(Full Brick)

CFB750-300S

750W

200~425V

12V, 15V, 24V, 28V, 36V, 48V

3KVAC Isolation

4.60×2.40x0.50
(Full Brick)

CFB800

800W

18~36V

28V

1.5KVDC Isolation

4.60×2.40x0.50
(Full Brick)
